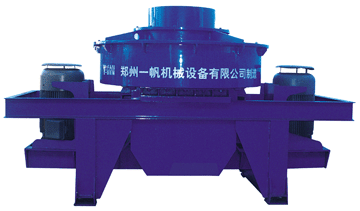

VI Series Vertical Shaft Impact Crushers



  VI Series Vertical Shaft Impact Crushers, which is high-performance equipment for sand making and shaping, is researched and produced by our corporation through absorbing the advanced technology from Germany, and has achieved world advanced standards. This equipment has two types: rock-on-rock and rock-on-iron. Sand yield of “rock-on-iron” type is higher by 10-20% than that of “rock-on-rock” type. It is widely used in fine crushing and rough grinding of metal, mineral, building aggregate, concrete, anti-fire material, glass raw material, manufactured sand and all kinds of metallurgical slug. It is also can utilized in shaping of high rank road surface. Compared with other kind of crusher, it is more advanced in intermediate hard, extra hard and abrasive material crushing, such as gravel, quartz, sandstone, basalt, silicon carbide, diamond grain and sintered bauxite .


Features and Benefits:
   1. High crushing efficiency and function of fine crushing and rough grinding;
   2. Simple structure, easy installation and maintenance and low operating cost;
   3. Excellent product of cubic shape, and small fraction of elongated flaky particle shape, which is suitable for aggregate shaping and manufactured sand.

Model

Max Feed Size (mm)

Capacity(t/h)

Motor Power(kw)

VI-1000

30(50)

3 ~ 20

7.5-22

VI-2000

40(60)

10 ~ 40

30-45

VI-3000

45(70)

30 ~ 60

75-90

VI-4000

55(70)

50 ~ 90

110-150

VI-5000

65(80)

80 ~ 150

180-264

VI-6000

80(100)

120 ~ 250

264-320

VI-7000

80(100)

180 ~ 350

320-400

VI-8000

100(150)

250 ~ 500

400-500

    VI-8000Ⅱ

100(150)

400 ~ 650

500-630

VI-9000

110(150)

550 ~ 1200

630-740
